Techne Calibration User Probe Interface NEW THREE YEAR WARRANTY
Miscellaneous lab equipment >> Techne Calibration User Probe Interface NEW THREE YEAR WARRANTY

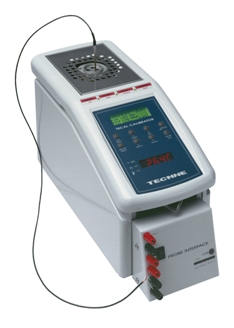

User Probe Interface
The UPI can automatically calibrate temperature sensors without the need for user intervention. Simply connect the UPI to the front panel of any of the Tecal H range of dri-block calibrators.
With the UPI you can realise a fully automated and unattended calibration of your temperature sensors saving both time and money. Simply place the sensor into the block insert and connect to the appropriate front panel terminals, switch the UPI on and select your sensor type.
The UPI accepts types K, J, N, T and E thermocouples along with 100 and 1000 ohm 3 and 4 wire RTDs. The unit will also accept a 4 to 20mA current loop sensor with the current reading of the transmitter displayed on the Tecal H unit.
Technical Specification
Specifications User Probe Interface
Temperature range K J N E type T/Cs -50°C to 650°C
Temperature range T type T/C -50°C to 400°C
Temperature range RTDs PT-100 PT-1000 -50°C to 650°C
Temperature range Current loop sensors 0 to 10mA 0 to 10mA
Temperature range Current loop sensors 10.1 to 20.0mA 10.1 to 20mA
Accuracy T/Cs ±0.5°C or ±0.3%
Accuracy RTDs ±0.3°C or ±0.1%
Accuracy Current loop sensors 0 - 10mA ±2.0µA or ±0.002mA
Accuracy Current loop sensors 10.1 - 20mA ±2.0µA or ±0.02%
Display resolution T/Cs and RTDs 0.1°C
Display resolution Current loop sensors 1.0 µA
Display units °C
Dimensions L x W x H (mm) 65 x 136 x 126
To ORDER-…www.triadsci.com CALL 732-292-1994
