Nabertherm Ovens, Electrically Heated also with Safety Technology According to EN 1539 NEW
"TR 60 - TR 1050
With their maximum working temperature of up to 300 °C and forced air circulation, the ovens achieve a perfect temperature uniformity which is much better than in ovens of most competitors. They can be used for various applications such as e.g. drying, sterilizing or warm storing. Ample warehousing of standard models provides for short delivery times." (Nabertherm)
- Tmax 300 °C
- Working range: + 5 °C above room temperature up to 300 °C

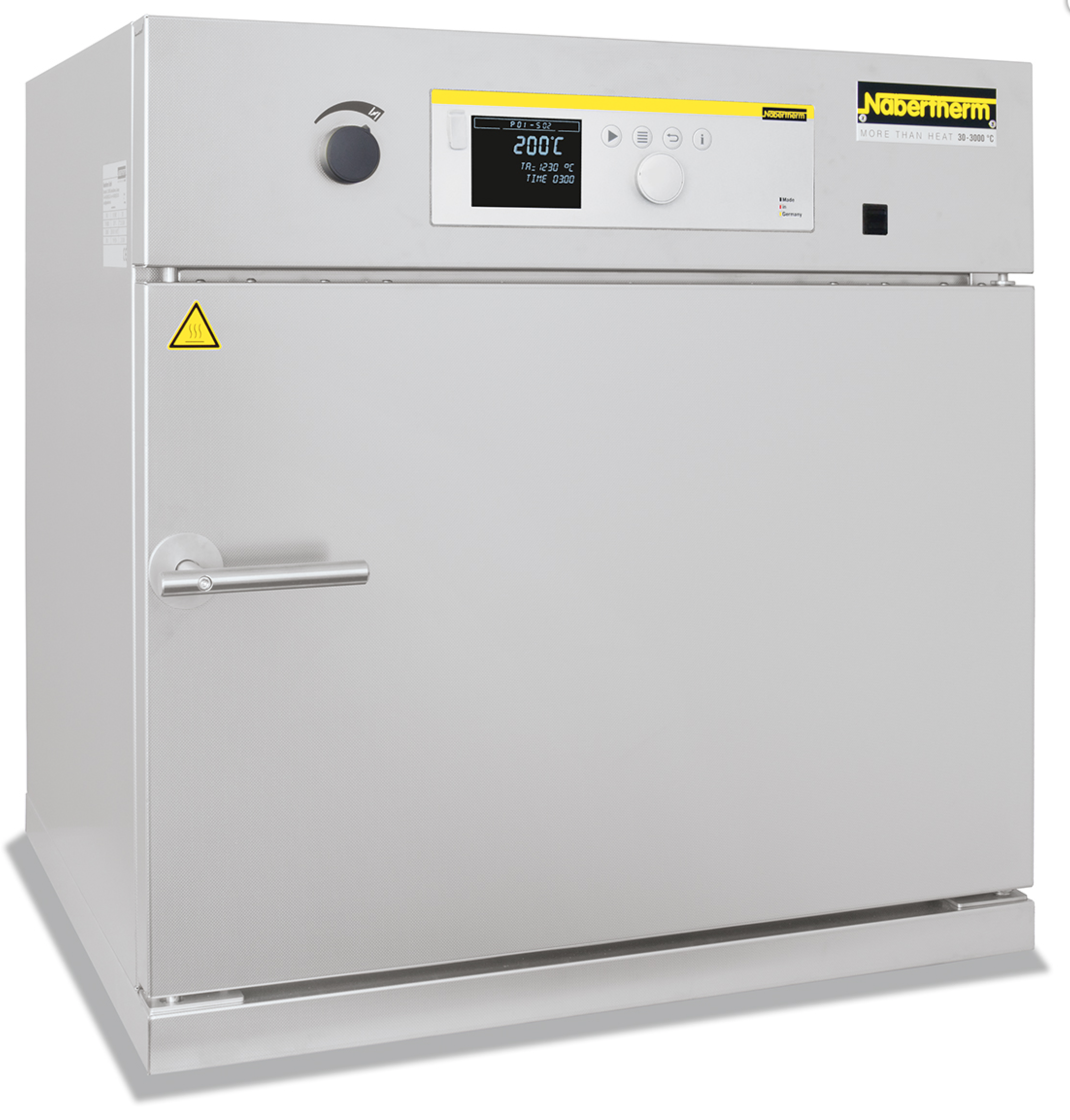

- Models TR 60 - TR 240 designed as tabletop models

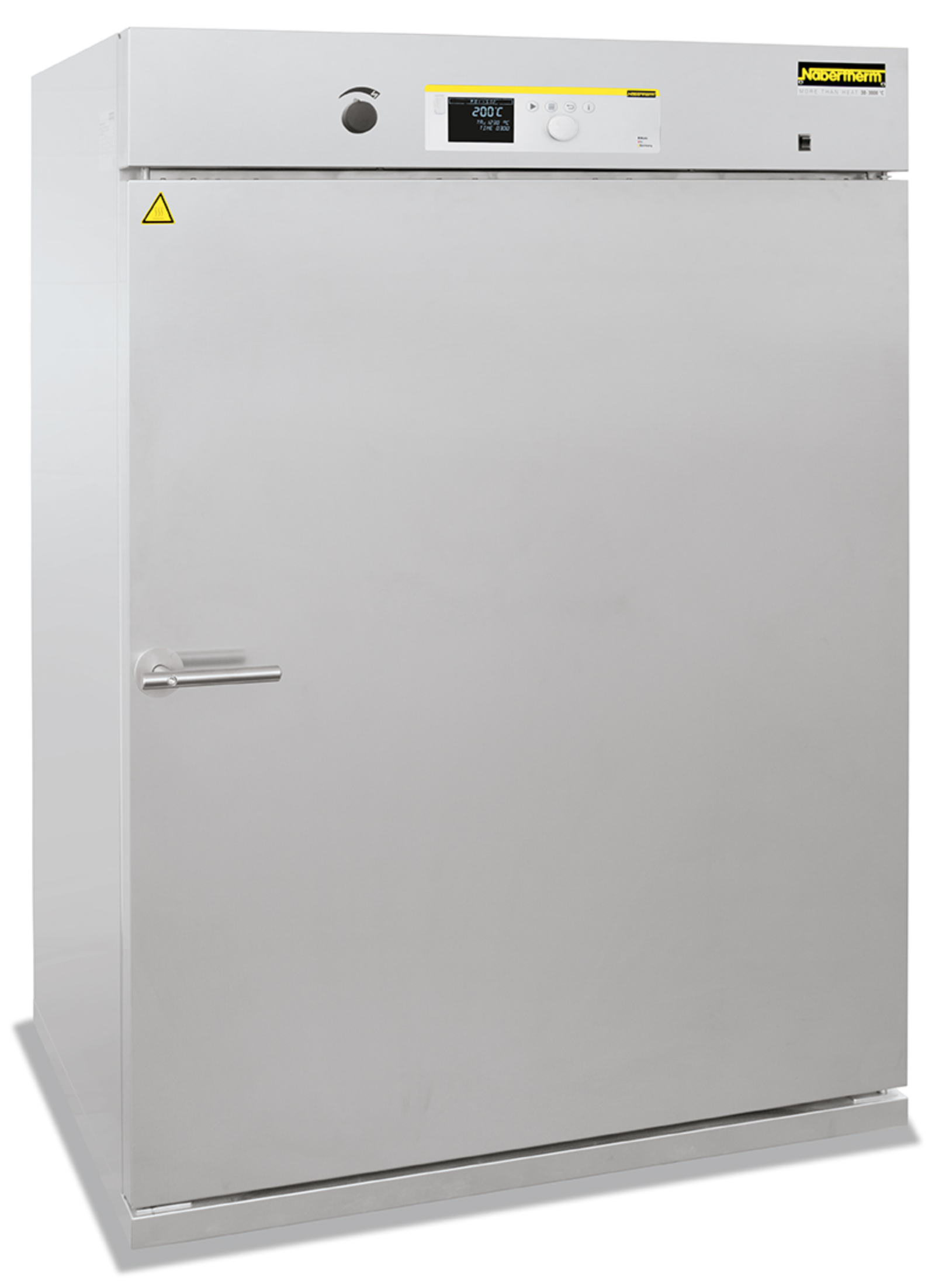

- Models TR 450 and TR 1050 designed as floor standing models
- Horizontal, forced air circulation results in temperature uniformity better than ∆T 8 K
- Stainless steel chamber, alloy 304 (AISI)/(DIN material no. 1.4301), rust-resistant and easy to clean
- Large handle to open and close the door
- Charging in multiple layers possible using removeable grids (number of removeable grids included, see table to the right)
- Large, wide-opening swing door, hinged on the right with quick release for models TR 60 - TR 450
- Double swing door with quick release for TR 1050
- TR 1050 equipped transport rollers
- Infinitely adjustable exhaust at the rear wall with operation from the front
- PID microprocessor control with self-diagnosis system
- Solid state relays provide for lownoise operation
Additional equipment:
- Over-temperature limiter with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and load
- Infinitely adjustable fan speed of the air circulation fan
- Window for charge observing
- Further removeable grids with rails
- Side inlet
- Stainless steel collecting pan to protect the furnace chamber
- Safety Technology according to EN 1539 for charges (TRS) containing liquid solvents up to model TRS 240, achievable temperature uniformity ∆T 16 K
- Transport costors for model TR 450
- Various modifications available for individual needs
- Upgrading available to meet the quality requirements of AMS 2750 E or FDA
- Process control and documentation with Controltherm MV software package
| Model | Tmax | Inner dimensions in mm | Volume | Outer dimensions in mm | Connected | Electrical | Weight | Grids in- | Grids | Max. | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| °C | w | d | h | in l | W | D | H | load kW² | connection* | in kg | cluded | max. | total load¹ | |
| TR 60 | 300 | 450 | 380 | 350 | 60 | 700 | 650 | 690 | 3.0 | 1-phase | 90 | 1 | 4 | 120 |
| TRS 60 | 260 | 450 | 360 | 350 | 57 | 700 | 680 | 690 | 6.3 | 3-phase | 92 | 1 | 4 | 120 |
| TR 120 | 300 | 650 | 380 | 500 | 120 | 900 | 650 | 840 | 3.1 | 1-phase | 120 | 2 | 7 | 150 |
| TRS 120 | 260 | 650 | 360 | 500 | 117 | 900 | 680 | 840 | 6.3 | 3-phase | 122 | 2 | 7 | 150 |
| TR 240 | 300 | 750 | 550 | 600 | 240 | 1000 | 820 | 940 | 3.1 | 1-phase | 165 | 2 | 8 | 150 |
| TRS 240 | 260 | 750 | 530 | 600 | 235 | 1000 | 850 | 940 | 6.3 | 3-phase | 167 | 2 | 8 | 150 |
| TR 450 | 300 | 750 | 550 | 1100 | 450 | 1000 | 820 | 1440 | 6.3 | 3-phase | 235 | 3 | 15 | 180 |
| TR 1050 | 300 | 1200 | 630 | 1400 | 1050 | 1470 | 955 | 1920 | 9.3 | 3-phase | 450 | 4 | 14 | 250 |
