"N 7/H - N 641/13
The models N 31/H ff. have been specially developed for preheating of moulds but also for hardening jobs when toolmaking." (Nabertherm)
Model | Tmax | Inner dimensions in mm | Volume | Outer dimensions in mm | Connected | Electrical | Weight | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
°C | w | d | h | in l | W | D | H | load/kW | connection* | in kg | |

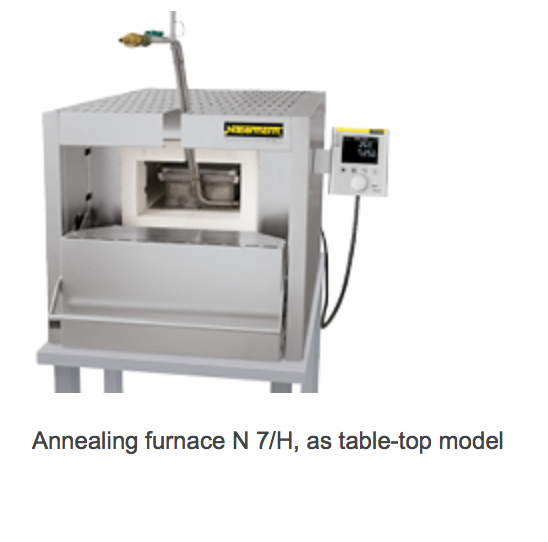

N 7/H¹ | 1280 | 250 | 250 | 120 | 7 | 720 | 640 | 510 | 3.0 | 1-phase | 60 |
N 11/H¹ | 1280 | 250 | 350 | 140 | 11 | 720 | 740 | 510 | 3.6 | 1-phase | 70 |
N 11/HR¹ | 1280 | 250 | 350 | 140 | 11 | 720 | 740 | 510 | 5.5 | 3-phase² | 70 |
N 17/HR¹ | 1280 | 250 | 500 | 140 | 17 | 720 | 890 | 510 | 6.4 | 3-phase² | 90 |
N 31/H | 1280 | 350 | 350 | 250 | 30 | 840 | 1010 | 1320 | 15.0 | 3-phase | 210 |

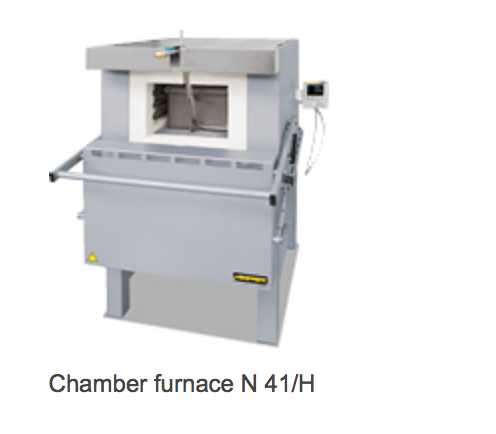

N 41/H | 1280 | 350 | 500 | 250 | 40 | 840 | 1160 | 1320 | 15.0 | 3-phase | 260 |
N 61/H | 1280 | 350 | 750 | 250 | 60 | 840 | 1410 | 1320 | 20.0 | 3-phase | 400 |
N 87/H | 1280 | 350 | 1000 | 250 | 60 | 840 | 1660 | 1320 | 25.0 | 3-phase | 480 |
N 81 | 1200 | 500 | 750 | 250 | 80 | 1140 | 1900 | 1790 | 20.0 | 3-phase | 820 |
N 161 | 1200 | 550 | 750 | 400 | 160 | 1180 | 1930 | 1980 | 30.0 | 3-phase | 910 |

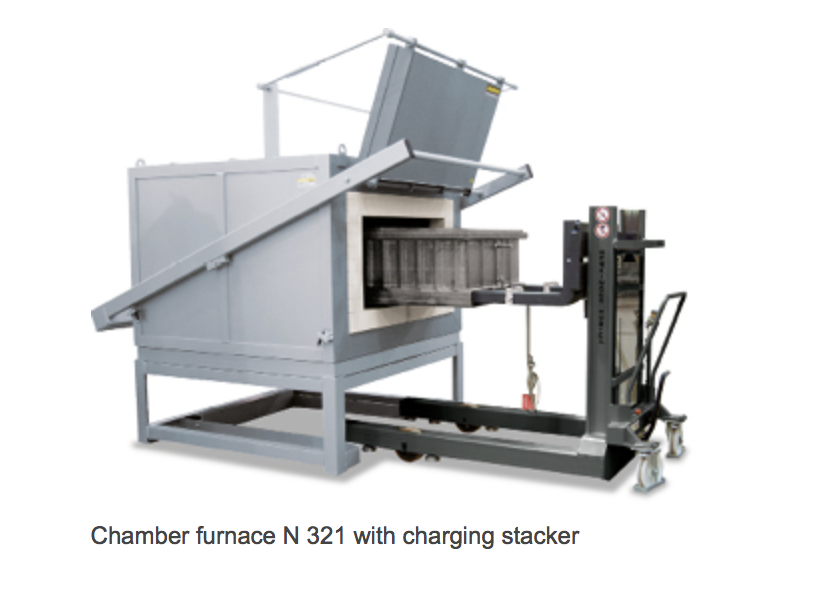

N 321 | 1200 | 750 | 1100 | 400 | 320 | 1400 | 2270 | 2040 | 47.0 | 3-phase | 1300 |
N 641 | 1200 | 1000 | 1300 | 500 | 640 | 1690 | 2670 | 2240 | 70.0 | 3-phase | 2100 |
N 81/13 | 1300 | 500 | 750 | 250 | 80 | 1220 | 1960 | 1840 | 22.0 | 3-phase | 900 |
N 161/13 | 1300 | 550 | 750 | 400 | 160 | 1260 | 1990 | 2030 | 35.0 | 3-phase | 1000 |
N 321/13 | 1300 | 750 | 1100 | 400 | 320 | 1480 | 2330 | 2090 | 60.0 | 3-phase | 1500 |
N 641/13 | 1300 | 1000 | 1300 | 500 | 640 | 1770 | 2730 | 2290 | 80.0 | 3-phase | 2500 |
