Nabertherm Chamber Furnaces with Wire Heating with Brick Insulation or Fiber Insulation NEW
Nabertherm LH 15/12 Nabertherm LF 120/14

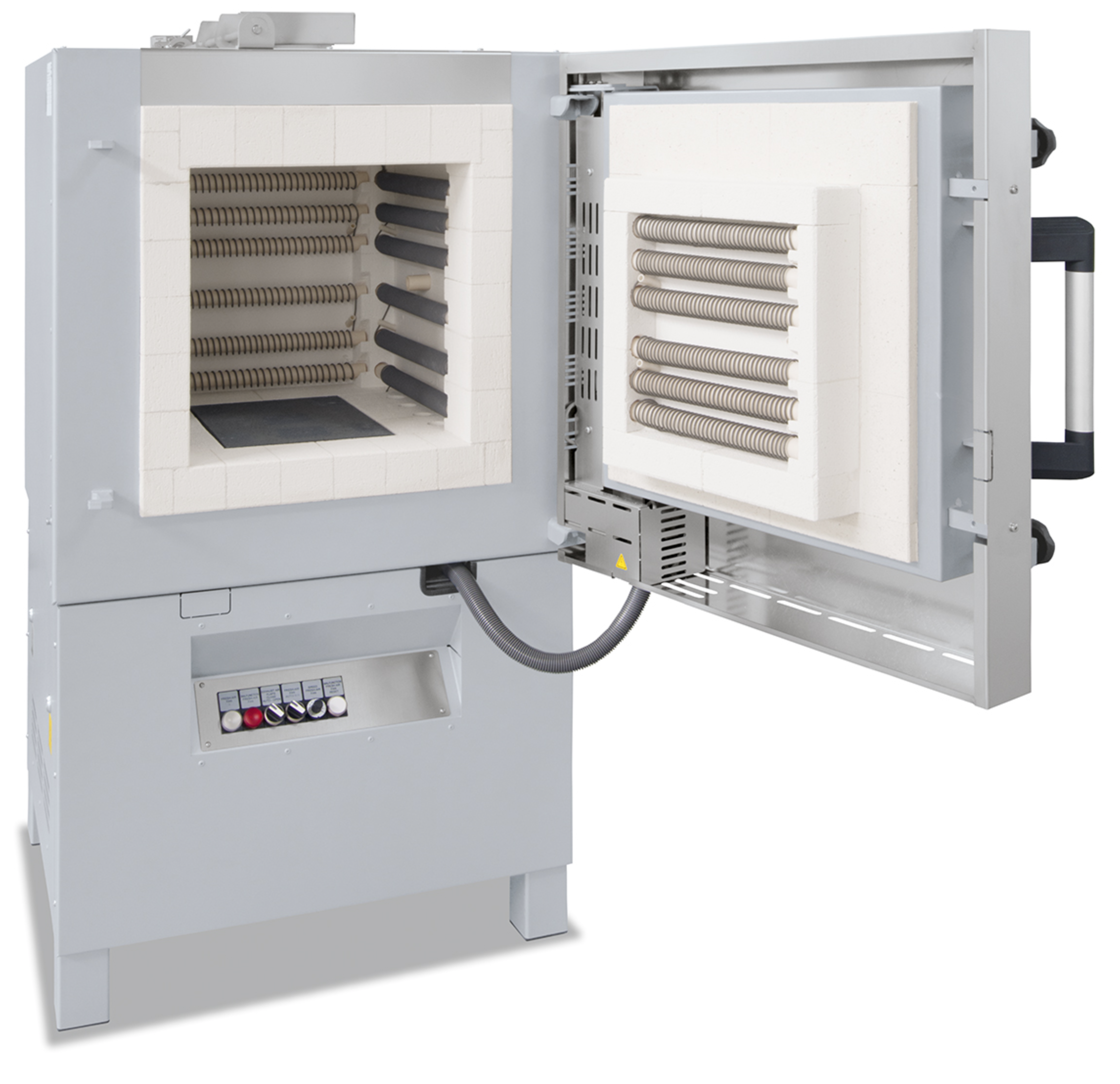

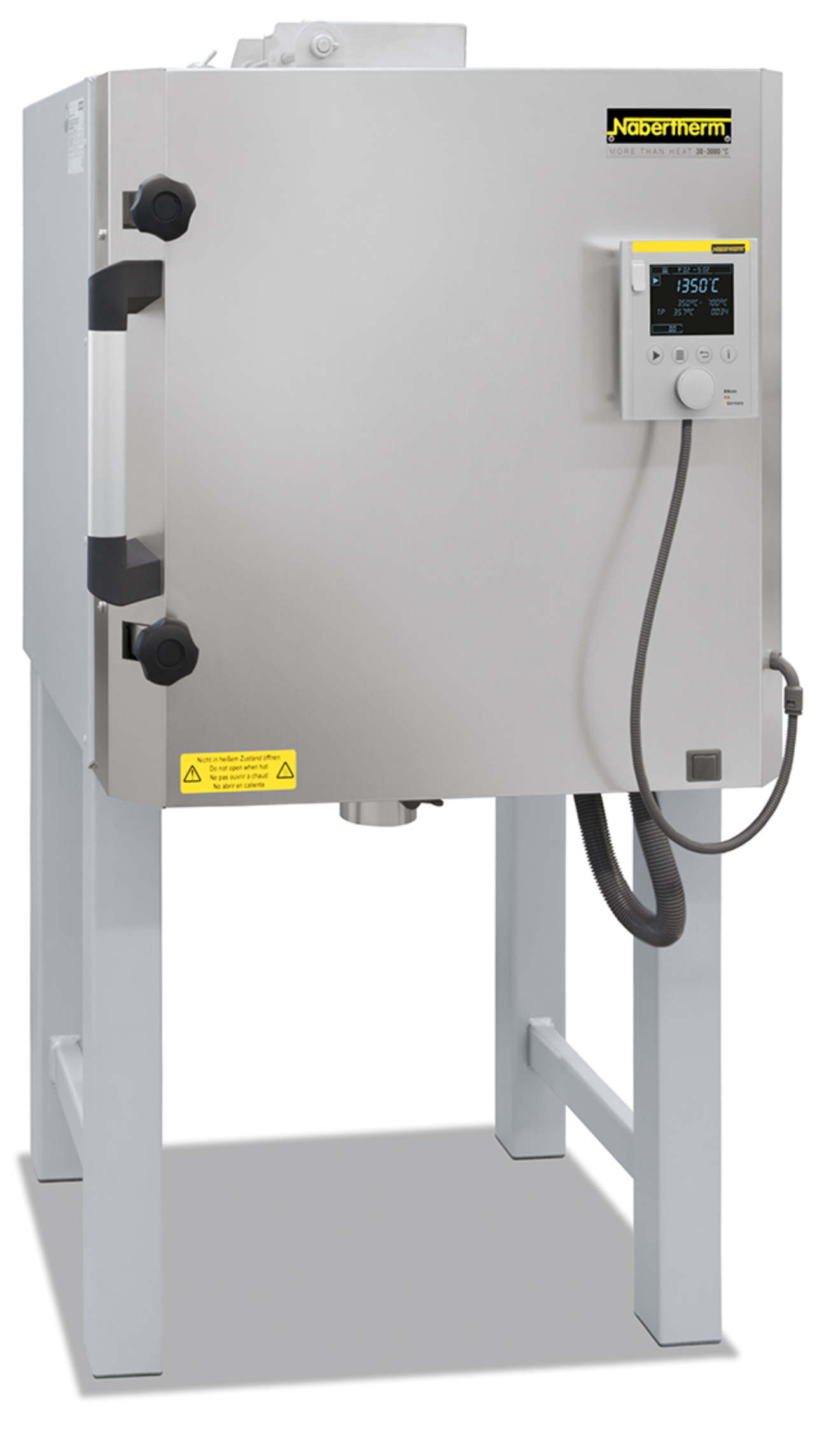

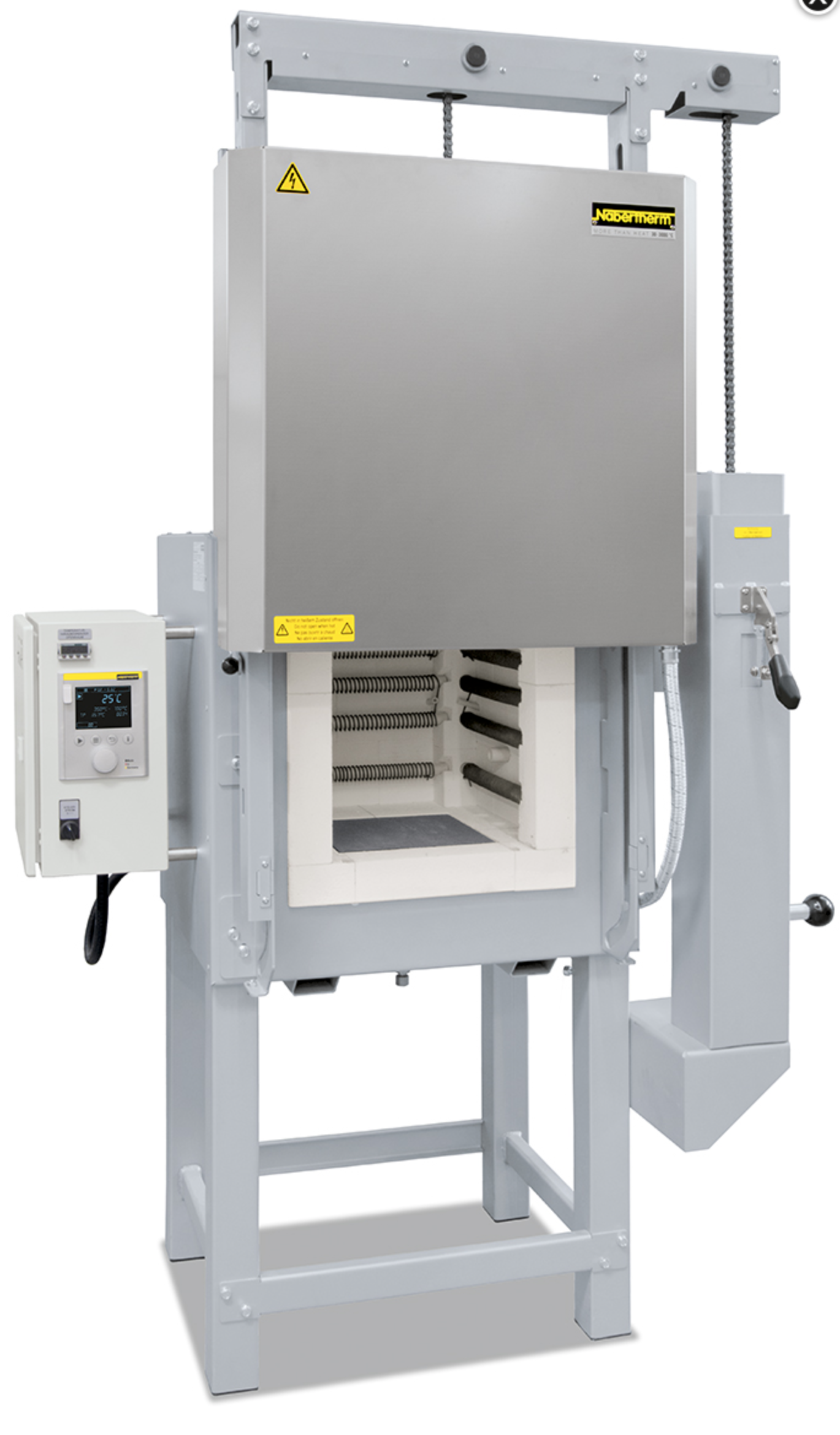

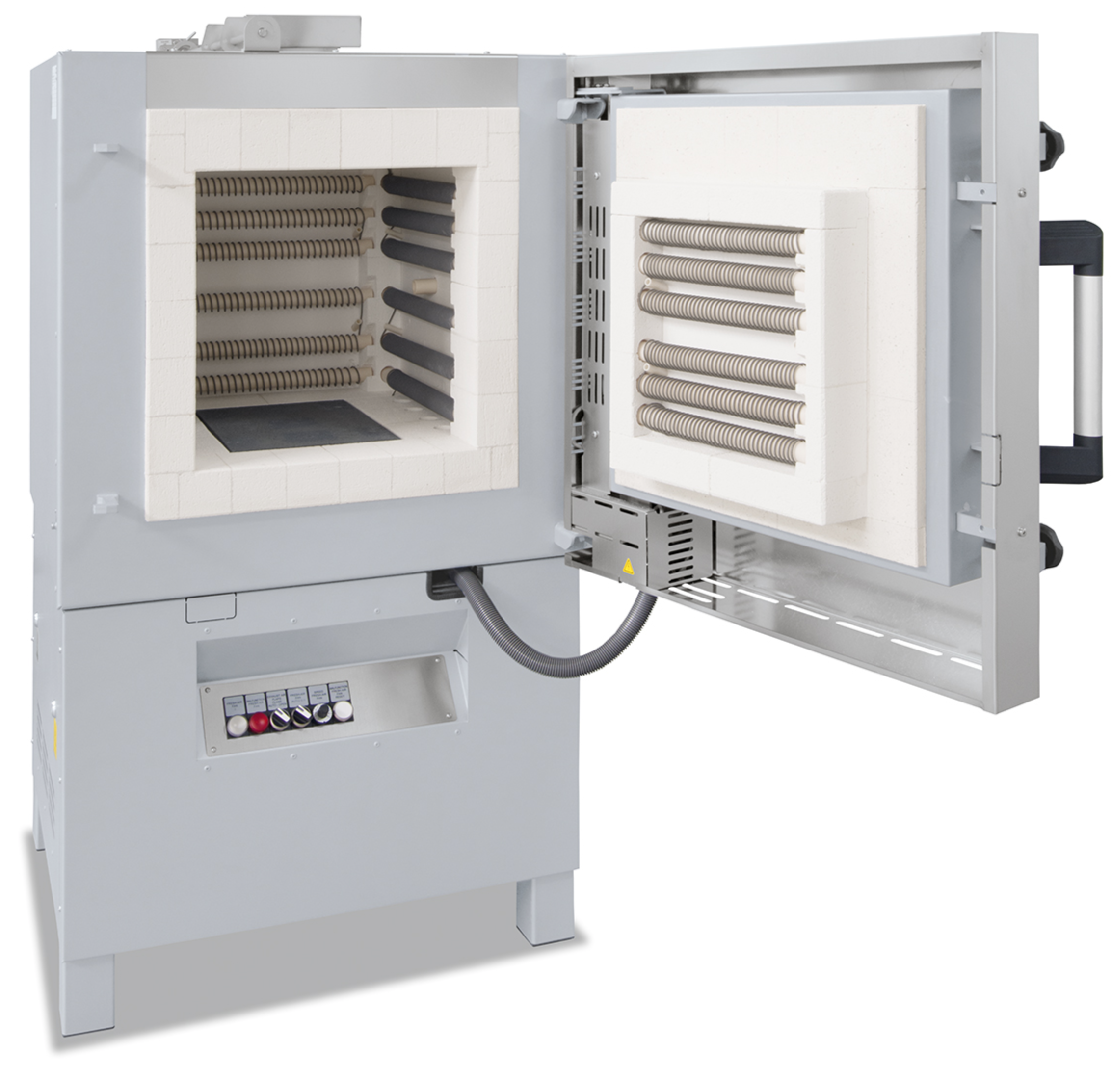

The LH 15/12 - LF 120/14 laboratory furnaces have been trusted for many years as professional chamber furnaces for the laboratory. These furnaces are available with either a robust insulation of light refractory bricks (LH models) or with a combination insulation of refractory bricks in the corners and low heat storage, quickly cooling fiber material (LF models). With a wide variety of optional equipment, these models can be optimally adapted to your processes." (NABERTHERM)
Model | Tmax | Inner dimensions in mm | Volume | Outer dimensions in mm | Connected | Electrical | Weight | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
°C | w | d | h | in l | W | D | H | load kW | connection* | in kg | |
LH 15/12 | 1200 | 250 | 250 | 250 | 15 | 570 | 790 | 1170 | 5.0 | 3-phase¹ | 150 |
LH 30/12 | 1200 | 320 | 320 | 320 | 30 | 640 | 860 | 1240 | 7.0 | 3-phase¹ | 170 |
LH 60/12 | 1200 | 400 | 400 | 400 | 60 | 720 | 1010 | 1320 | 8.0 | 3-phase | 260 |
LH 120/12 | 1200 | 500 | 500 | 500 | 120 | 820 | 1110 | 1420 | 12.0 | 3-phase | 340 |
LH 216/12 | 1200 | 600 | 600 | 600 | 216 | 900 | 1210 | 1530 | 20.0 | 3-phase | 400 |
LH 15/13 | 1300 | 250 | 250 | 250 | 15 | 570 | 790 | 1170 | 7.0 | 3-phase¹ | 150 |
LH 30/13 | 1300 | 320 | 320 | 320 | 30 | 640 | 860 | 1240 | 8.0 | 3-phase¹ | 170 |
LH 60/13 | 1300 | 400 | 400 | 400 | 60 | 720 | 1010 | 1320 | 11.0 | 3-phase | 260 |
LH 120/13 | 1300 | 500 | 500 | 500 | 120 | 820 | 1110 | 1420 | 15.0 | 3-phase | 340 |
LH 216/13 | 1300 | 600 | 600 | 600 | 216 | 900 | 1210 | 1530 | 22,0 | 3-phase | 400 |
LH 15/14 | 1400 | 250 | 250 | 250 | 15 | 570 | 790 | 1170 | 8.0 | 3-phase¹ | 150 |
LH 30/14 | 1400 | 320 | 320 | 320 | 30 | 640 | 860 | 1240 | 10.0 | 3-phase¹ | 170 |
LH 60/14 | 1400 | 400 | 400 | 400 | 60 | 720 | 1010 | 1320 | 12.0 | 3-phase | 260 |
LH 120/14 | 1400 | 500 | 500 | 500 | 120 | 820 | 1110 | 1420 | 18.0 | 3-phase | 340 |
LH 216/14 | 1400 | 600 | 600 | 600 | 216 | 900 | 1210 | 1530 | 26,0 | 3-phase | 400 |
LF 15/13 | 1300 | 250 | 250 | 250 | 15 | 570 | 790 | 1170 | 7.0 | 3-phase¹ | 130 |
LF 30/13 | 1300 | 320 | 320 | 320 | 30 | 640 | 860 | 1240 | 8.0 | 3-phase¹ | 150 |
LF 60/13 | 1300 | 400 | 400 | 400 | 60 | 720 | 1010 | 1320 | 11.0 | 3-phase | 230 |
LF 120/13 | 1300 | 500 | 500 | 500 | 120 | 820 | 1110 | 1420 | 15.0 | 3-phase | 300 |
LF 15/14 | 1400 | 250 | 250 | 250 | 15 | 570 | 790 | 1170 | 8.0 | 3-phase¹ | 130 |
LF 30/14 | 1400 | 320 | 320 | 320 | 30 | 640 | 860 | 1240 | 10.0 | 3-phase¹ | 150 |
LF 60/14 | 1400 | 400 | 400 | 400 | 60 | 720 | 1010 | 1320 | 12.0 | 3-phase | 230 |
LF 120/14 | 1400 | 500 | 500 | 500 | 120 | 820 | 1110 | 1420 | 18.0 | 3-phase | 300 |
