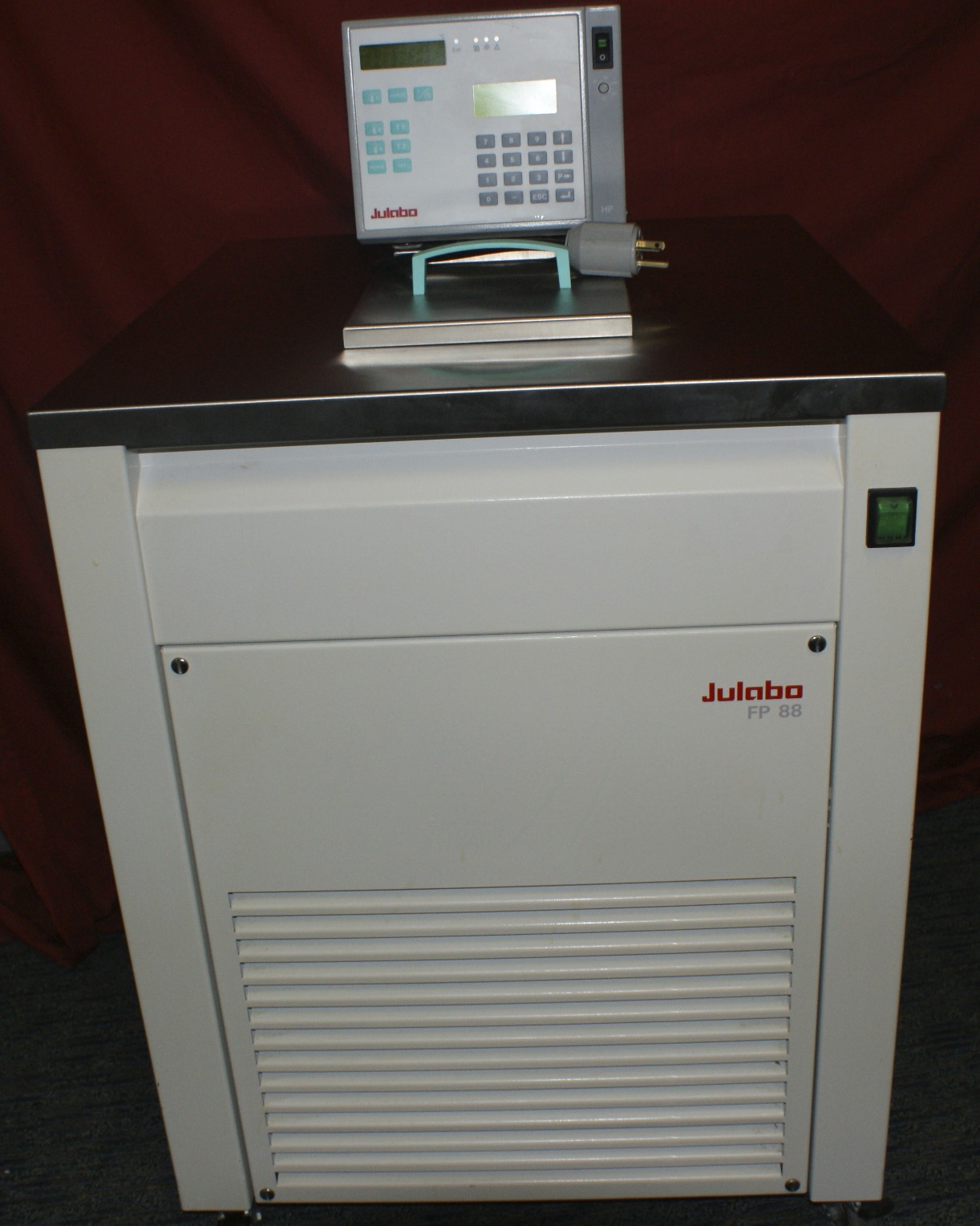

Julabo FP88 with HP Controller Julabo FP-88 HP Ultra-low Refrigerated Circulator
SN 10037367
PN HP/K-S-BAS[FE3/FP88] xxxx
-88 Celsius Temperature for ultra-low applications
Please inquire to confirm availability
General specifications
Working temperature range °C -88 … 100
Temperature stability K ±0,05
Cooling capacity °C +20 0 -20 -40
-60 -80
(bath liquid: ethanol) kW 0.11 0.96 0.92 0.73
0.59 0.15
Refrigerant R404A + R23
Heater wattage W / V 1200 / 230
Pressure pump:
pressure, max. (at 0 l) bar 0,9
discharge, max. (at 0 mbar) l/min 22
Electrical connections:
Alarm output 24-0 Vdc / max. 25mA
Computer interface RS232C
Bath opening mm 130x150
Bath depth mm 160
Filling volume Liter 5,5 ... 8
Overall dimensions (WxDxH) mm 550x610x920
Weight kg 121
