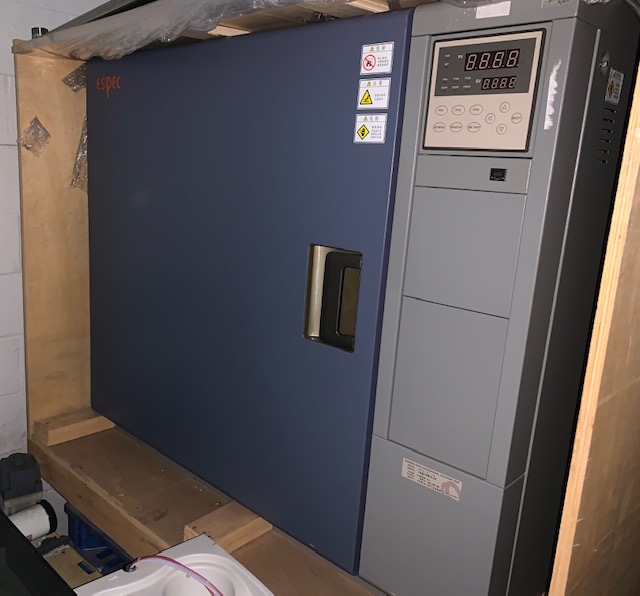

Shanghai Espec Environmental Equipment Corportaion SEG-012H ESPEC SEG-012H ESPEC OVEN
Chambers Temperature Humidity Stability >> Shanghai Espec Environmental Equipment Corportaion SEG-012H ESPEC SEG-012H ESPEC OVEN
Shanghai Espec Environmental Equipment Corportaion SEG-012H ESPEC SEG-012H Tabletop Environmental Chamber looks great
Some information we have tried to gather-
The introduction of Japan's advanced technology and processes, is a leader in the industry at home and abroad, and has a wide market in the field of aerospace, electronics electrical, instrumentation, office equipment, home appliances, medicine and chemical industry, military industrial enterprises and tobacco.
Circulation: forced hot air circulation ventilation mode
Intake air volume control: Manual
Power supply voltage: AC220V 1Ф3W 50 / 60HZ
Maximum power consumption: 3.5
Maximum current: 15.6
Working temperature: 0 ℃ ~ + 40 ℃
Temperature range: RT + 20 ℃ ~ + 200 ℃
Inner dimension W × H × D (mm): 600 × 700 × 600
External dimensions W × H × D (mm): 1240 × 1100 × 840
Content volume: 252L
Weight: 150Kg

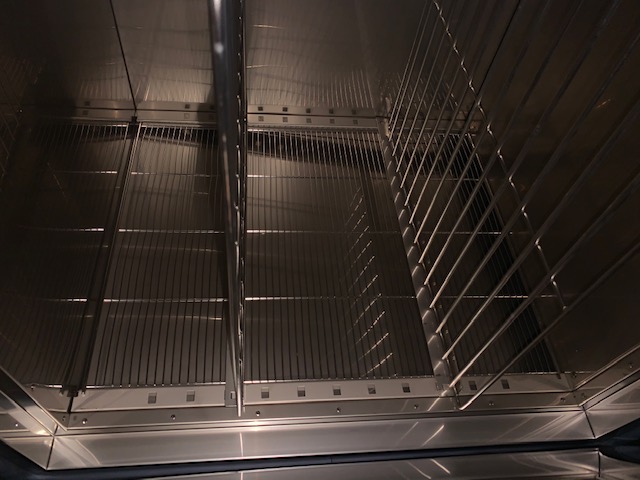

Shelf: 2
Shelf Rack: 2 sets
Environmental Test Equipment Co., Ltd. on 海爱斯佩克
Place of origin Shanghai China
Power supply
AC 220 1Φ 4W 50/60 Hz
Allowable range supply voltage variation
Performance guarantee within the rated voltage of ± 5%, the range can run the rated voltage within ± 10%
Maximum current
15.6 A * 1
Power
3.5 KVA * 2
Use of the environment+ 0 ℃ ~ + 40 ℃
Robin fashion-Forced hot air circulation ventilation mode
Intake air volume control-Manual feed air volume control
Temperature Range- Ambient temperature of + 20 ℃ + 300 ℃ (with H as the ambient temperature + 20 ℃ ~ + 300 ℃) * 3
Temperature fluctuation-± 0.2 ℃ at1OO ℃, ± 0.3 ℃ at200 ℃, ± 0.4 ℃ at300 ℃ * 3
Temperature deviation ± 1.5 ℃ at1OO ℃, ± 2.0 ℃ at200 ℃, ± 3.0 ℃ at300 ℃ * 3
Temperature rise time
From ambient temperature to 200 ℃ within 40 minutes; from ambient temperature to 300 ℃ within 60 minutes * 3
Structure ShellCold-rolled steel, surface spray
Structure Liner 18-8 Cr-Ni stainless steel plate
Structure Insulation materials Glass wool
Structure Heater Iron-chromium alloy heating wire heater
Structure Blower
Centrifugal impeller

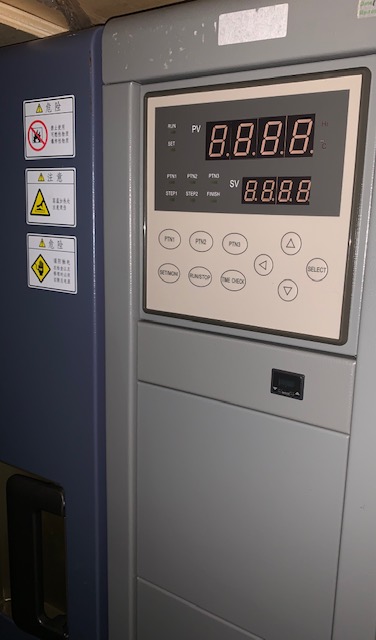

Temperature Indicating Controller
Adjust the way PID control mode
Temperature Indicating Controller Operating mode
Setpoint operation, program operation
Temperature Indicating Controller
Range Temperature: O ~ 210 ℃, O ~ 310 ℃; 1 minute to 99 hours, 59 minutes
Temperature Indicating Controller
Setting Mode Digital bit shift key changes in the way +
Temperature Indicating Controller
Display LED digital display
Temperature Indicating Controller
Sensing element K-type thermocouple
Temperature Indicating Controller
Security
Input disconnection detection function, the upper limit temperature overheat alarm, buzzer alarm function, automatic temperature overheat prevention function, self-diagnostic function
Timing function
1 minute to 99 hours, 59 minutes
Security devices
GFCI power supply, blower temperature switches, temperature fuse, power distribution room door switches, heater overload short-circuit protection, independent overheat prevention device
Shelf load 20 Kg / layer
Contents 252 L
Product interior dimensions 600W700H600D (mm)
Product Size 1240W1100H840D (mm) * 4
Weight About 150 Kg
Accessory X 2 sets of shelves
Shelf rack x 2 sets
Instructions x 1 册
Remark
* 1: The number in brackets is the maximum temperature to 300 models current;
* 2: The figures in brackets for the temperature to a maximum power consumption model 300;
* 3: Data according to GB standard measured at ambient temperature + 20 ℃, no-load conditions;
* 4: Excluding protrusion portion.
