Techne Calibration Tecal 650S and Tecal 650H temperature calibrators NEW THREE YEAR WARRANTY

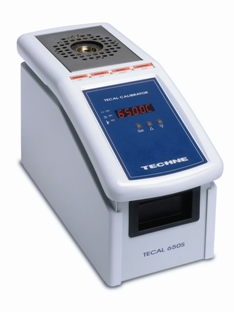

Tecal 650S and Tecal 650H
This temperature calibrator is ideal for calibrating temperature sensors used in the food and pharmaceutical, petrochemical and power generation industries as well as calibrating any sensors used in the temperature range outlined in the specification below.
S Version: Set required Temperature and Calibrate
H Version: Set required Temperature and Calibrate also programmable for switch test and ramp rate etc.
The 650 models have large aluminium-bronze blocks which can house large single or multi-hole inserts. These inserts can accommodate probes to a depth of 152.4mm providing high stability and uniformity.
All models are equipped with high-powered band heaters and two fans in order to rapidly heat and cool the temperature probe block to the required range of temperatures.
Technical Specification
Specifications Tecal 650S & H
Temperature range 25°C above ambient to 650°C
Display Accuracy ±0.4°C
Temperature Uniformity ±1°C
Measuring zone 0 to 50mm from base of well
Temperature Stability ±0.09°C ( after 10 mins)
Display resolution 0.1°C or 0.1 °F
Display units Selectable °C or °F
PC Interface RS-232
Heating rate 20°C to 400°C 35 minutes
Cooling rate 400°C to 100°C 30 minutes
Ramp Rate °C per min 0.1 to 10 on H version
Switch test on H model
Large well Ø38mm x 152 mm deep lnserts
Fan Cooling Automatic
Fast Cooling Rapid Water Cooling Probe - Compatible Option
Carry case Soft carry case included
Dimensions L x W x H (mm) 285 x 190 x 426
Options
• Wide range of inserts and custom options available
• Techneworks software and cable (on S model) supplied with H model
• Hard Carry case
• UKAS calibration certificate
