Techne Calibration Tecal 425S and Tecal 425H temperature calibrators NEW THREE YEAR WARRANTY
Block Heaters >> Techne Calibration Tecal 425S and Tecal 425H temperature calibrators NEW THREE YEAR WARRANTY

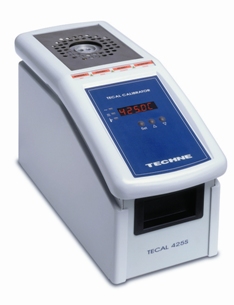

Techne Calibration Tecal 425S and Tecal 425H temperature calibrators NEW THREE YEAR WARRANTY
These calibrators use large aluminium Heater blocks to give fast heating and cooling rates which provide high accuracy, uniformity and stability up to 425°C.
S Version: Set required Temperature and Calibrate
H Version: Set required Temperature and Calibrate also programmable for switch test and ramp rate etc.
Both 425 models are equipped with a large fan in order to quickly cool the blocks to 20°C above ambient.
Suitable for many applications in both the field and laboratory.
Technical Specification
Specifications Tecal 425S & H
Temperature range 20°C above ambient to 425°C
Display Accuracy ±0.3°C
Temperature Uniformity ±0.2°C
Measuring zone 0 to 50mm from base of well
Temperature Stability ±0.05°C ( after 10 mins)
Display resolution 0.1°C or 0.1 °F
Display units Selectable °C or °F
PC Interface RS-232
Heating rate 20°C to 400°C 15 minutes
Cooling rate 400°C to 100°C 25 minutes
Ramp Rate °C per min 0.1 to 10 on H version
Switch test on H model
Large well Ø38mm x 135 mm deep lnserts
Fan Cooling Automatic
Fast Cooling Rapid Water Cooling Probe - Compatible Option
Carry case Soft carry case included
Dimensions L x W x H (mm) 285 x 190 x 426
Options
• Wide range of inserts and custom options available
• Techneworks software and cable (on S model) supplied with H model
• Hard Carry case
• UKAS calibration certificate
To ORDER-…www.triadsci.com CALL 732-292-1994
