Perkin Elmer 1310 Grating Infrared Spectrophotomet
UV-Vis -NIR Systems >> Perkin Elmer 1310 Grating Infrared Spectrophotomet

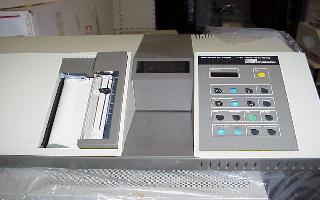

Perkin Elmer 1310 Grating Infrared Spectrophotometer- Our units ship with a new solid state detector installed not using salt windows, specifications equal or better than new and long lasting detection system, Automatic-recording, double-beam, optical null instrument which features microprocessor-controlled abscissa functions, a DC wedge/pen servo mechanism, a four-digit frequency readout, and a touch-control panel. The monochromator, photometer and electronics compartment houses the grating monochromator, the detector, and the associated electronics. The source compartment contains the source, the power supply and the fuses.Abscissa Range 4000 - 600 cm-1Abscissa Accuracy 4000 - 2000 cm-1: ±6 cm-12000 - 600 cm-1: ±3 cm-1Abscissa Expansion x0.5, x1, x5Ordinate Accuracy ±2 TOrdinate Repeatability within 0.75 T100 Line Flatness ±3 TSignal/Noise Better than 100:1Resolution (Narrow Slit Program) 3 cm-1 at 1000 cm-15 cm-1 at 3000 cm-1Stray Light < 1T (4000 - 450 cm-1)< 2T (450 - 250 cm-1)< 3T (250 - 200 cm-1)Time Drive 0.5, 1 and 5 cm/min File Photo of Similiar Instrument
Perkin Elmer UV/VIS/NIR Lambda 19 upgraded Perkin Elmer Lambda 19 UV VIS NIR Perkin Elmer options such as Integrating Sphere may be available, this system ships with software, computer, printer and ready to go- This double beam double monochrometer ratio recording UV Visible NEAR INFRARED Spectrophotometer, Total Useable Wavelength Range 185-3200nm, a real nice system that ships ready to go
