Shimadzu Balance Shimadzu ATX84 Shimadzu ATX124 Shimadzu ATX224 Shimadzu ATY64 Shimadzu ATY124 Shimadzu ATY224 Shimadzu Analy
Shimadzu Analytica >> Shimadzu Balance Shimadzu ATX84 Shimadzu ATX124 Shimadzu ATX224 Shimadzu ATY64 Shimadzu ATY124 Shimadzu ATY224 Shimadzu Analytical Balance NEW THREE YEAR WARRANTY

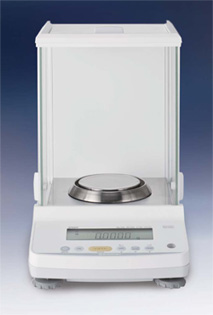

Shimadzu Balance Shimadzu ATX84 Shimadzu ATX124 Shimadzu ATX224 Shimadzu ATY64 Shimadzu ATY124 Shimadzu ATY224 Shimadzu Analytical Balance
BRAND NEW with THREE YEAR FACTORY WARRANTY
"ATX/ATY series realized superior performance and budget price with Shimadzu weighing sensor UniBloc.
This model achieve usability and high accuracy as analytical balance." (SHIMADZU)
This model achieve usability and high accuracy as analytical balance." (SHIMADZU)
Touch-Key calibration (ATX series):
Automated calibration can be started by pressing keys. Also, your external calibration weights can be used for span calibration (all models)
Easy Setting best fit to weighting application:
Quickly adjust the desired ration of stability and response for every application, even during measurement, with one-touch operation.
WindowsDirect communication function:
Send balance data to Excel or other Windows applications without any data communication software installation required. By combining standard Auto print functions with typical spreadsheet functios, even difficult applications can be easily automated.
Very large size pan:
The pan size of AT series is 91mm dia. It's the biggest one in this class and you can set large container (e.g. flask) easily.
Application support:
- Formulation mode
- Comparator function
- Piece counting function
Specifications
| Model | ATX84 | ATX124 | ATX224 | ATY64 | ATY124 | ATY224 |
| Capacity | 82g | 120g | 220g | 62g | 120g | 220g |
| Minimum Display | 0.1mg | |||||
| Repeatability (Standard Deviation) | ≤0.1mg | |||||
| Linearity | ±0.2mg | |||||
| Response Time | Approx. 3.0 seconds | |||||
| Operating Ambient Temperature | 5-40°C 20-85% | |||||
| Temperature Coefficient Sensitivity (ppm/C) | ±2ppm/°C(no condensation) | |||||
| Pan Size (mm) approx. | Φ91 | |||||
| Main Body Dimensions (mm) approx. | 213(W)×356(D)×338(H) | |||||
| Weight (kg) approx. | 6.2 | 6.0 | ||||
| Power requirement | 12V, 1A | |||||
| Internal Calibration | X | |||||
For additional details regarding this equipment, please visit http://www.shimadzu.com/an/balance/at.html to download the product brochure and data sheet.
