Anton Paar ABBEMAT 300 Automatic Refractometer Anton Paar Automatic Refractometer VWR 75801-650 used nice

Anton Paar ABBEMAT 300 Automatic Refractometer Anton Paar Automatic Refractometer VWR 75801-650 used nice


Measuring ranges Refractive index scale (RI): Range nD: 1.26 to 1.72, Resolution nD: +/- 0.00001, Accuracy nD: +/- 0.0001
Measuring ranges Brix scale: Range: 0 to 100 %, Resolution: 0.01%, Accuracy: 0.05%
Measuring range Temperature: Range: 4 to 85 C, Temperature probe accuracy: +/- 0.05 C, Temperature probe stability: +/- 0.002 C

Abbemat digital refractometers allow fast and non-destructive refractive index measurements.

Easy operation
Color LCD screen and membrane keys which are resistant to spillage and dirt and can be operated even when wearing gloves
A reminder for test measurements or adjustments can be set at user-defined intervals
Automatic warning if the sample volume is not large enough for a valid measurement
No sample preparation, readings within seconds
A quick wipe cleans the prism after each measurement
Compliance and traceability
Full compliance with 21 CFR Part 11
Compliant with international standards such as ASTM, ICUMSA, OIML, AOAC, DIN/ISO, FDA, ISI, JIS and pharmacopoeias
History and current status of results via the result memory
Adjustment and check history, check intervals and validity checks for each measurement
Liquids, pastes, polymers and solids
Turbid, colored or opaque samples
Liquids containing air bubbles or solid particles
No influence from humidity, temperature or vibrations
A wide range of scales are stored in the Abbemat for converting refractive index into concentrations, etc.


They are factory calibrated with official standards from the Physikalisch-Technische Bundesanstalt (PTB, National Metrology Institute of Germany).

Refractive index results from Abbemat 300 are accurate to ±0.0001 nD. All Abbemat 300 refractometers provide full compliance with 21 CFR Part 11, with user levels, audit trail, and forgery-proof data export.

Refractive index results from Abbemat 500 provides an accuracy of ±0.00002 nD. All Abbemat 500 refractometers provide full compliance with 21 CFR Part 11, with user levels, audit trail, and forgery-proof data export.

Certifications: CE Compliant.

SPECIFICATIONS

ScalesSugar scales, syrup and honey scales, alcohol scales, urine scales, serum scales, more than 70 scales available
Temperature SensorBuilt - in Pt 100 sensor
Temperature ControlAutomatic Peltier temperature control between 4°C and 85°C
InterfacesRS-232, CAN-bus, 3 USB ports
Light SourceLED light source, average lifetime 100,000 h
ElectricalAC 100 to 240 VAC, 50/60Hz, 120 VA max.
DisplayLCD 3.5”, 320 X 240 Pixels
Weight 6.5 kg (14.3 lbs)
Length 300 mm (11.8")
Height 330 mm (13")
Width 145 mm (5.7")

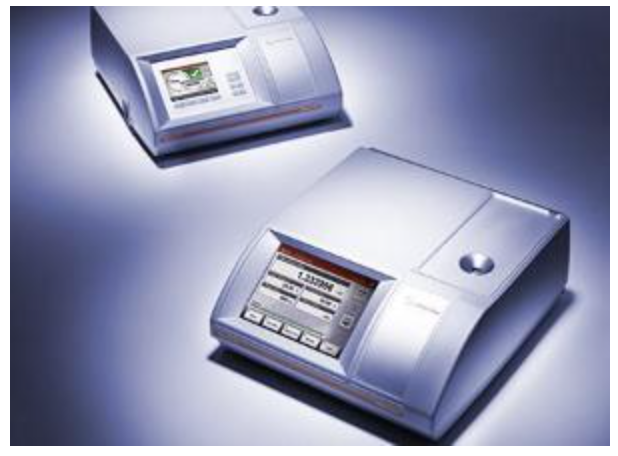

File photo of similar
