Perkin Elmer Model 341 Polarimeter Perkin Elmer 341 Polarimeter Perkin Elmer Polarimeter 341 Perkin Elmer 341 Automatic Polarimeter used ships tested and working

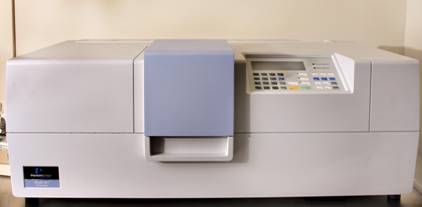

Polarimeter Perkin Elmer Model 341, a precision Polarimeter with Na and Hg source lamps and Glan-Taylor polarizer. For quality constrol and reaserach work- The instrument can be extended into the UV and is ready for polarimetric HPLC detection. The Model 341 Polarimeter uses the proven optical null principle and microprocessor electronics - a highly precise instrument that is easy to useSpecifications are as follows:Built-in mercury and sodium lamps, wavelength selection by turret-mounted filters (589 nm (NaD), 578 nm, 546 nm, 436 nm and 365 nm spectral lines). Four spare positions for additional mercury line filters. Two selectable aperture stops for standard cells and microcells. UV-transmitting Glan-Taylor calcite polarizer prisms. Microprocessor electronics. Optical null system with automatic rotation of the analyzer, range of rotation /- 85°. Internal angular resolution: 0.0001°. Display of results in angular degrees, as specific or molar rotation or in °Z of the International Sugar Scale and with user defined factors. Automatic gain control, digital signal averaging with 10 selectable integration periods. Menu-oriented user interaction via integrated touch keys, multilingual. The instrument includes a parallel and a serial port (Centronics and RS-232C) for the connection of printers and data systems, an interface for a PC/AT keyboard and a barcode reader and an analog output for chart recoders (four recording ranges). GLP compliant report. Additionally, the instrument provides inputs and outputs for hardware control signals.
