Carver Bench Top Transfer Press 4633, Used

Carver Bench Top Transfer Press 4633 Carver Transfer Press Carver 4633 Transfer press used nice


Information gathered from the web-

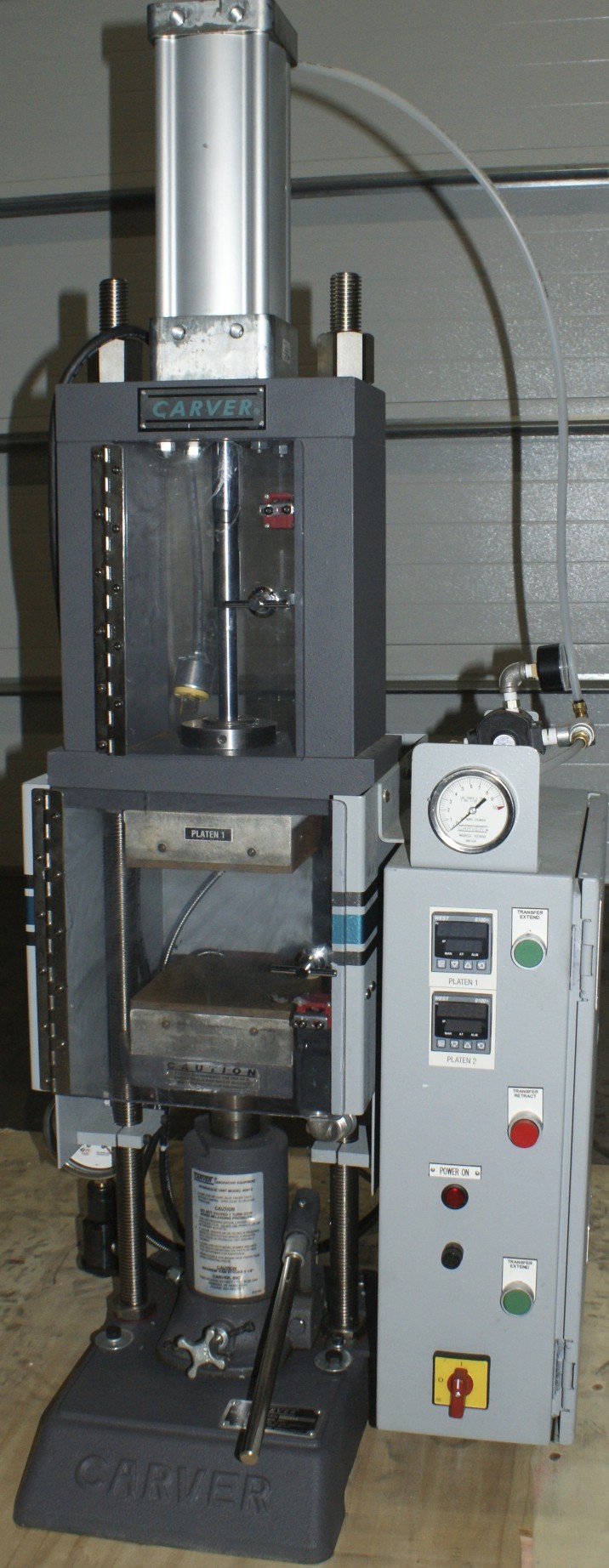

This bench top transfer press is based on the industry standard Model C. The Model C has been outfitted with a pneumatic transfer cylinder providing a compact, cost effective transfer design suitable for prototyping and limited production run applications. The transfer sections features a self-aligning chrome plated plunger with a 7cc injection capacity.




Features:

12 Ton Clamping Force
1000 Pound Transfer Force
6” x 6” Heated Platens
Electric Cartridge Heaters
Digital Heat Control
Two Hand Anti-Tie Down Operation of Transfer Cylinder
Safety Shields for Clamp and Transfer Areas
Specifications for Carver Transfer Press 4633
Clamp Section Transfer Section
Cylinder Type: Manual / Hydraulic Cylinder Type: Two Hand Anti-Tie Down
Operation / Pneumatic
Force: 12 tons Force: 1000 pounds
Platens: (350°F) 6"" x 6"" heated Shot Size: 7cc

Daylight: 6"" - -

Stroke: 5.1"" - -
