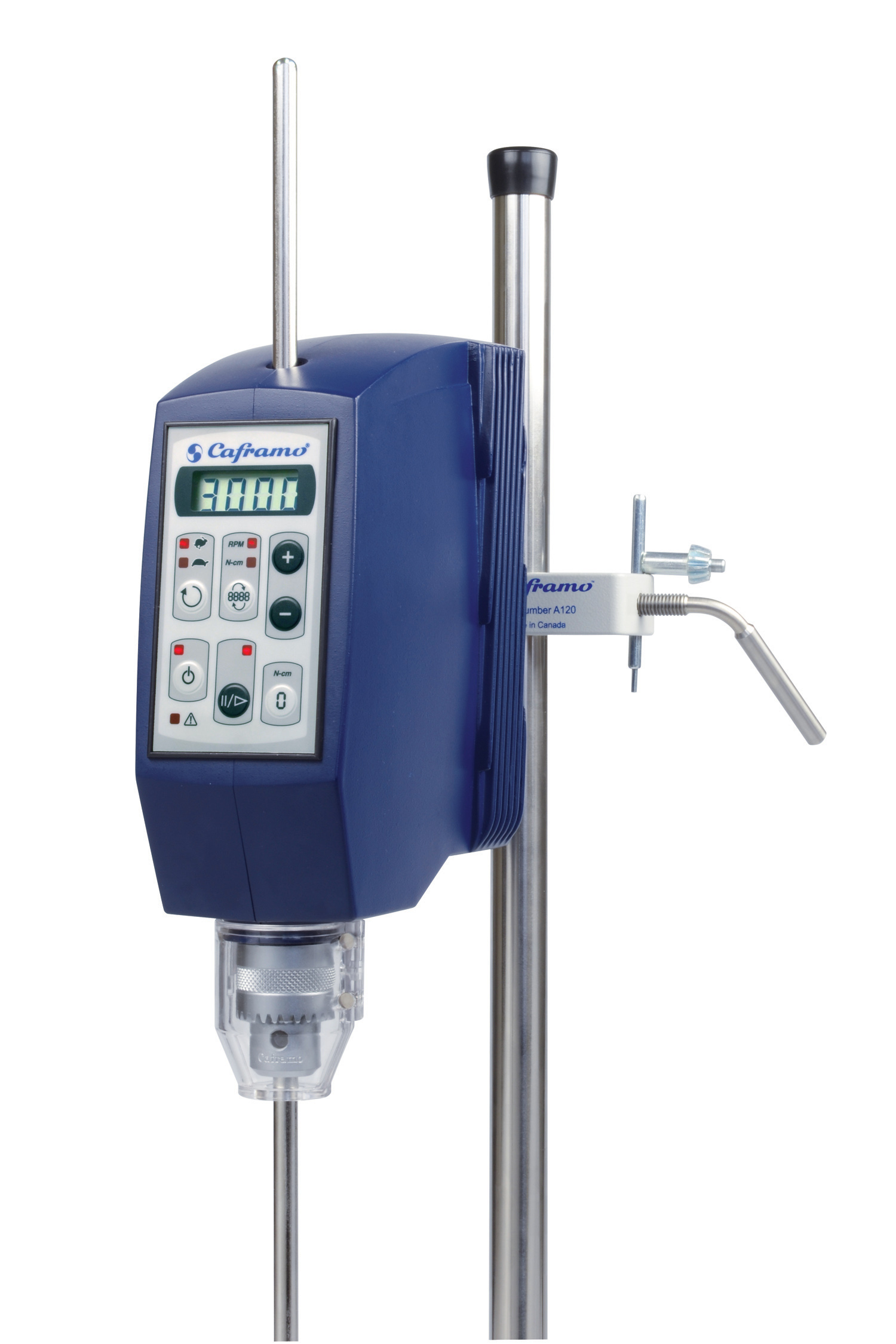

Caframo’s BDC3030 high torque stirrers Caframo BDC-3030 Caframo High Torque Mixer NEW
Caframo’s high torque stirrers are designed and engineered specifically to meet the demands of continuous use. The heart of the BDC line is the high performance Brushless Direct Current (BDC) motor. A unique two speed transmission provides incredible amounts of power. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty. Expect to be impressed!
Product Features:
Preferred stirrer for cosmetic market
Brushless DC Motor
Chuck guard
Totally enclosed metal housing
Electronic Control
Smart 2 Speed Transmission
Through shaft
Benefits:
High efficiency, less heat
Safely encloses spinning chuck to protect user, protects chuck from splashes
Precise speed adjustment
Set speed is maintained as viscosity changes
Transmission selects high-torque or high speed range
Easy impeller adjustment saving time
Specifications:
Speed Low speed range: 20 to 600 rpm
High speed range: 600 to 3000 rpm
Maximum Torque Low speed range: 30 in-lbs = 480 in-oz = 339 N-cm
High speed range: 6 in-lbs = 96 in-oz = 68 N-cm
Safety Approvals CSA, CE Marked, RoHS, WEEE
Speed Accuracy +/- 1% of reading or +/- 1 rpm
Torque Accuracy +/- 5% of reading or +/- 1 in-lb
Electrical Input 120 Volts, 50/60 Hz, 5 Amps or 230 Volts 50/60 Hz, 3 Amps
Output Power 1/5 hp, 150 Watts
Weight 11 lbs (5 kg)
Chuck accepts up to 3/8'' (9.5 mm) shafts
Maximum volume 15.8 US Gallons (60 Litres)
Maximum Viscosity 50000 cps
Warranty 3 Years
Customer Applications Personal care products, Shampoo, Face cream, Pharmaceuticals, Tissue grinding
