Yamato Fine Ovens Yamato DF811 Yamato 1011 Yamato DH811 Yamato 1011 NEW

Mechanical Convection >> Yamato Fine Ovens Yamato DF811 Yamato 1011 Yamato DH811 Yamato 1011 NEW

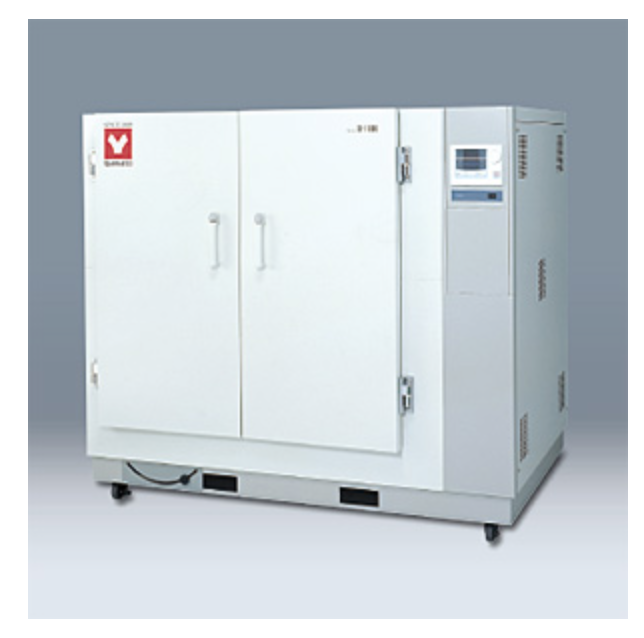

Yamato Fine Ovens DF811/1011 & DH811/1011 NEW

Large Fine Oven of High Throughput



"Large fine oven designed to support high throughput." (Yamato)

Allows precision maintenance of large parts at a constant temperature.

Allows quick exhaust and cooling in the unit with the exhaust damper.

Interactive key entry on the control panel allows every one to make settings easily. The temperature in the unit during operation is displayed with a bright LED and fluorescent display tubes clearly.

Standard functions include program operation and other high precision functions.

Improved safety functions include the self diagnostic function, the automatic overheat prevention function, and the key lock function.



Specifications:
Model

DF811

 DF1011

DH811

DH1011
System Forced convection and ventilation
Performance*1
Operating temp. range Room temp. +15 deg.C to 200 deg.C Room temp. +15 deg.C to 300 deg.C
Temp. adjustment accuracy +/-0.2 deg.C (at 200 deg.C) +/-0.3 deg.C (at 300 deg.C)
Temp. uniformity +/-3.0 deg.C (at 200 deg.C) +/-5.0 deg.C (at 300 deg.C)
Configuration & function
Temperature control PID control with a micro computer
Temp and time setting Digital setting and display with a jog dial
Operation & control Fixed operation, auto start operation, auto stop operation,
program operation (up to 16 segments)
Additional functions Clock display (current time), actual time timer for up to 24 hours, accumulation timer function (accumulated up to 49,999 hours), calibration offset function
Temp. sensor K-thermocouple (double sensor)
Heater Stainless steel pipe heater with a fan
Heater capacity 4.5 kW 6.0 kW 6.9 kW 9.0 kW
Fan Axial fan (condenser motor: 20W, two motors are used in 1011)
Cable port I.D. 30 mm (rear panel)
Heat insulator  Glass wool Glass wool + ceramic fiber
Other additional function Exhaust damper (manual)
Safety functions Self diagnostic function (temp. sensor error, heater disconnection, SSR short-circuit, automatic overheat prevention), key lock, independent overheat protection, over-current electric leakage breaker
Standards
Internal dimensions
(W x D x H)		 800 x 800 x 800 mm 1,000 x 1,000 x 1,000 mm 800 x 800 x 800 mm 1,000 x 1,000 x 1,000 mm
External dimensions*2
(W x D x H)		 1,500 x 1,015 x 1,330 mm 1,700 x 1,215 x 1,530 mm 1,500 x 1,015 x 1,330 mm 1,700 x 1,215 x 1,530 mm
Internal capacity 512L 1,000L 512L 1,000L
Weight Approx. 160 kg Approx. 230 kg Approx. 160 kg Approx. 230 kg
Power supply (50/60 Hz) 3-phase 200V, 50/60 Hz, 15A 3-phase 200V, 50/60 Hz, 20A 3-phase 200V, 50/60 Hz, 22A 3-phase 220V, 50/60 Hz, 30A
Accessories
Shelf Stainless steel punching metal x 3
Shelf brackets 3 sets
