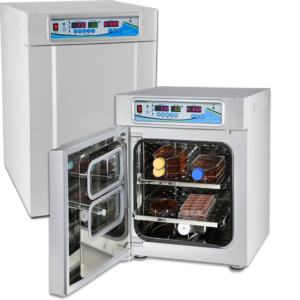

ST SERIES & ST PLUS CO2 INCUBATORS
Incubators >> ST SERIES & ST PLUS CO2 INCUBATORS
|
H3550-45 ST-45 CO2 Incubator, 45L, with 2 shelves |
|
H3550-180 ST-180 CO2 Incubator, 180L, with 3 shelves |
|
H3551-45P ST-45 Plus CO2 Incubator, 45L, with 2 shelves |
|
H3551-180P ST-180 Plus CO2 Incubator, 180L, with 3 shelves |
SKU: H3550-GROUP
Specifications
|
Temperature Range: |
Ambient +5° to 60°C |
|
|
Temperature Increments: |
0.1°C |
|
|
Temperature Uniformity: |
± 0.4°C* |
|
|
Temperature Stability: |
0.1°C |
|
|
Temperature Accuracy: |
0.1°C |
|
|
CO2 Range: |
0 to 20% |
|
|
CO2 Increment: |
0.1% |
|
|
CO2 Accuracy: |
± 0.1% |
|
|
CO2 Sensor: |
Dual Beam IR |
|
|
Chamber Dimensions (45L): |
13.2 x 14.2 x 15.4 in. / 33.5 x 36.1 x 39.2 cm |
|
|
Chamber Dimensions (180L): |
18.7 x 20.8 x 28 in. / 47.3 x 52.8 x 71 cm |
|
|
Chamber Volume: |
45L / 180L |
|
|
Chamber Material: |
Stainless Steel (316) |
|
|
Exterior Dimensions (180L): |
16.5 x 18.3 x 21.8 in. / 42 x 46.5 x 55.3 cm |
|
|
Weight (45L): |
77 lbs / 35 kg |
|
|
Weight (180L): |
172 lbs / 78 kg |
|
|
Electrical: |
120V or 230V 50-60Hz (350W) |
|
|
Warranty: |
2 years |
|
|
PLUS Models Only |
||
|
Hight Heat Decon: |
125°C for 8 hours |
|
|
Humidity Control: |
Up to 95% |
|
|
Split Inner Door Compartments: |
45L: 2 / 180L: 6 |
With our unique and proprietary heat distribution technology, the Benchmark ST Series of CO2 incubators provide the highest levels of temperature accuracy with minimal fluctuation (within 0.1°C). The six-side heating system, in combination with a low speed internal fan, uniformly spreads air throughout the chamber (without air exchange from the external environment). The chamber walls are constructed of high grade (304) stainless-steel, and all
corners are rounded, preventing the accumulation of dirt/debris.
For added security, all models feature an internal alarm to alert the user if the CO2 percentage changes, or the temperature fluctuates by more than 1°C from the set point. In addition, a “quick-cal” calibration button allows for quickly adjusting the chamber temperature to match that of a properly calibrated external thermometer.
Two series (standard and PLUS) are each available in 45L and 180L chamber sizes. PLUS models include advanced programming for high heat decontamination (at 125°C), a unique split inner glass door for access to the chamber without exposing it fully to the external environment and programmable humidity percentage, up to 95%.
