Techne Calibration CH-5 Chiller with Pump unit NEW THREE YEAR WARRANTY

Circulator Ultra-low Temperature >> Techne Calibration CH-5 Chiller with Pump unit NEW THREE YEAR WARRANTY

Techne Calibration CH-5 Chiller with Pump unit NEW THREE YEAR WARRANTY

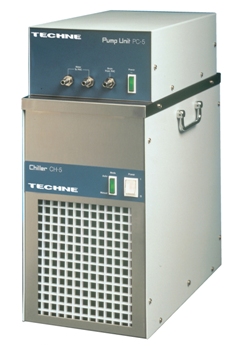

CH-5 Chiller with Pump unit
The CH-5/PC-5 Chiller/Pump Unit is designed for use in conjunction with the TECAL 140 H & S Calibrators to achieve calibration temperatures down to -40°C.
This unit provides a chilled water supply which is pumped through the Heatsinks on the Tecal 140 H & S units allowing the Tecal to reach -40°C.

The unit is designed to run on distilled or deionised water.

The CH-5/PC-5 can also be used to pass chilled water through the cooling coil on the Liquid Calibration Baths (LCB) and Cooling Probe (FDB00CP) giving rapid cooling or a minimum temperature of +10°C.

Technical Specification

Specifications CH-5/PC-5

Temperature range 4°C to 15°C

Cooling capacity 400W

Temperature Control Thermostat on/off

Electrical control Manual

Bath Capacity 5 litres

Pump capacity 20 litres/minute

Pump Head height 6 metres with water

Bath Dimensions L x W x H (mm) 300 x 140 x 150

Overall Dimensions L x W x H (mm) 430 x 235 x 524

To ORDER-…www.triadsci.com CALL 732-292-1994
